FCL2000 Transmitter

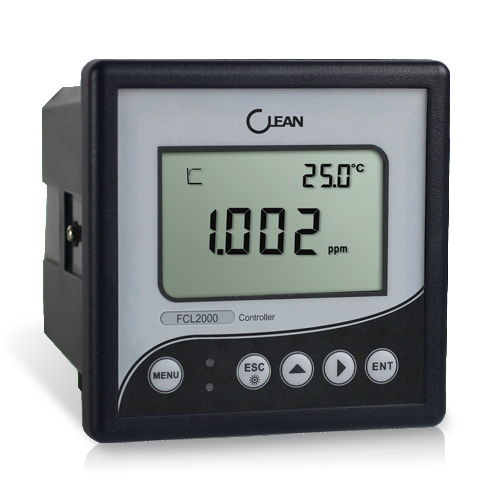

FCL2000 Free Chlorine Transmitter
Revolutionary way to instantly get free chlorine value by using tri-electroded method measuring: faster and accurate, matching up to DPD results, without any reagent consuming.
●NEMA4X, IP65 rated: waterproof and anti-gas. High protection against electromagnetic
interference.
●Large LCD, with high luminance LED orange backlight.
●Automatically compensates salinity / barometric after manual input for increased accuracy.
●Control modes: on / off limited control (LIT).
●Separately adjustable high and low set-point hysteresis (dead bands) prevent chattering of relays
around the set points.
●Two level password protection prevents unauthorized tampering with settings.
●Scaleable isolated 0/4 -20 mA Outputs.
interference.
●Large LCD, with high luminance LED orange backlight.
●Automatically compensates salinity / barometric after manual input for increased accuracy.
●Control modes: on / off limited control (LIT).
●Separately adjustable high and low set-point hysteresis (dead bands) prevent chattering of relays
around the set points.
●Two level password protection prevents unauthorized tampering with settings.
●Scaleable isolated 0/4 -20 mA Outputs.
 |
 |
 |
 |
| Waterworks | Drinking water | Swimming pool | Food hygiene |
| Free Chlorine | Range | 0.000 - 2.000ppm 0.00 - 20.00ppm |
| Resolution | 0.001ppm, 0.01ppm/±2% of the full scale range | |
| Accuracy | 0.1 °C/±0.5°C | |
| Calibration point | 1 point(0%) or 2 points( the comparision value between 0% and DPD) | |
| Temperature Range | -5.0 - +100 °C | |
| Temperature | Range | -10.0-110.0 °C |
| Resolution | 0.1 °C | |
| Accuracy | ±0.3 °C | |
| Temperature Sensor | 22 K | |
| Temperature Compensation | Automatic | |
| Signal Output | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1% F.S. | |
| Load | < 500 O | |
| Others | Power | 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
| Model | Specification | images |
| FCL2000 | Free Chlorine Transmitter | |
| CS5520 | Process Free Chlorine Sensor |  |
