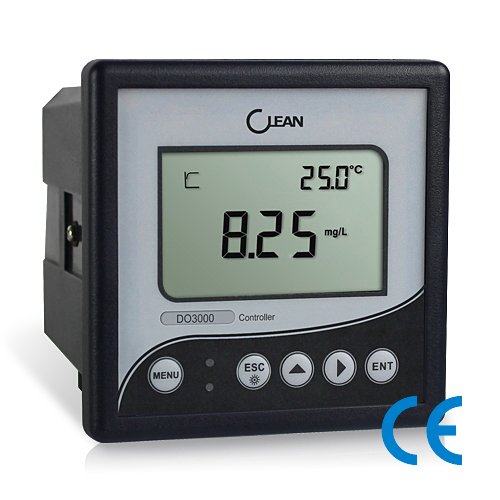

DO3000 Controller / Transmitter
DO3000 Dissolved Oxygen Controller / Transmitter
Designed for fermentation, pharmaceutical and complex industrial process, Simple plaintext operation, Large luminant LCD, Cost efficient, Reliable even under unfavorable ambient conditions. DO3000 is your most economical choice.
●Panel mounted type.
●IP65 rated: waterproof and airproof. High protection against electromagnetic interference.
●Scalable isolated 4-20 mA Output.
●Control modes:On/Off limited control (LIT) .
●Separately adjustable high and low point setting.
●Large LCD,with high luminance LED backlight.
●Optional nanoampere electrode (80nA, 400nA)
●IP65 rated: waterproof and airproof. High protection against electromagnetic interference.
●Scalable isolated 4-20 mA Output.
●Control modes:On/Off limited control (LIT) .
●Separately adjustable high and low point setting.
●Large LCD,with high luminance LED backlight.
●Optional nanoampere electrode (80nA, 400nA)
 |
 |
 |
 |
| Aquaculture | Industrial process | Boiler water | Circulating water |
| Dissolved Oxygen | Range | 0.0-400.0% , 0.00-40.00 mg/L |
| Resolution | 0.1% , 0.01 mg/L | |
| Accuracy | 0.0-40.0 ppt | |
| Salinity Compensation | 0.2% F.S. | |
| Temperature Compensation | 0.0-50.0 C | |
| Pressure Compensation | 600-2000 mBar | |
| Temperature | Range | -10.0-110.0 C |
| Resolution | 0.1°C | |
| Accuracy | 0.3 C | |
| Temperature Sensor | 22 K | |
| Temperature Compensation | Automatic | |
| Signal Output | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1% F.S. | |
| Load | < 500 O | |
| Relay Ouput | On/Off | 2 SPST Relays |
| Output | 2.5A 230 VAC | |
| Others | Power | 85~260 VAC or 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
| Model | Specification | images |
| DO5000 | Dissolved Oxygen Controller/Transmitter |  |
| CS4551 | Dissolved Oxygen Sensor |  |
| CS4751 | Dissolved Oxygen Sensor |  |
| CS45513H1E | Replacement membrane cap&electrolyte Kit |  |
