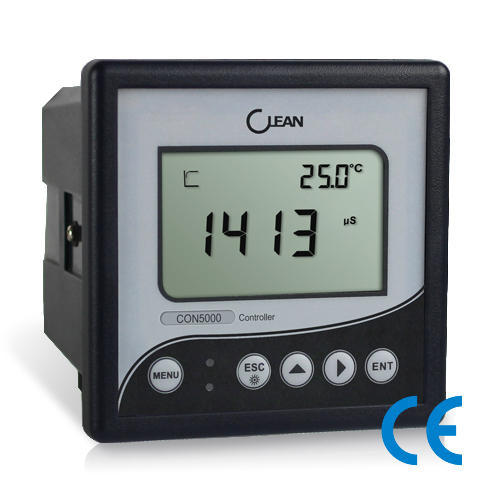

CON5000 Controller / Transmitter
CON5000 Conductivity / TDS / Salinity
Extraordinarily high level of user comfort, RS-485 output, High-end measuring technology precisely tailored to the measuring task in harsh industrial environment. CON5000 is your professional choice.
●Standard 1/4 DIN casing, easy installation.
●IP65 rated: high luminance LED backlight, applicable to harsh environment.
●Adopt integrated switching power supply module; high protection against electromagnetic
interference.
●Menu-driven program that simplifies set-up.
●Two level password protection prevents unauthorized tampering with settings
●Instant browsing all the settings in measurement mode, easy to master your working state
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
●Scaleable isolated 0/4-20mA Outputs
●Temperature value offset adjustment.
●RS-485 output
●IP65 rated: high luminance LED backlight, applicable to harsh environment.
●Adopt integrated switching power supply module; high protection against electromagnetic
interference.
●Menu-driven program that simplifies set-up.
●Two level password protection prevents unauthorized tampering with settings
●Instant browsing all the settings in measurement mode, easy to master your working state
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
●Scaleable isolated 0/4-20mA Outputs
●Temperature value offset adjustment.
●RS-485 output
 |
 |
 |
 |
| Ultra pure water | Industrial process | Boiler water | Circulating water |
| Conductivity | Range | 0.000 S/cm-400.0 mS/cm |
| Resolution | 0.001 S/cm-0.1 mS/cm | |
| Accuracy | 0.5% F.S. | |
| Cell Constant | K=0.01,0.1,1.0,10.0 | |
| Reference Temperature | 15.0-25.0 C | |
| Temperature Factor | 0.00-4.00% | |
| Salinity | Range | 0.0-400.0 g/L |
| Resolution | 0.1 g/L | |
| Accuracy | 0.5% F.S. | |
| TDS | Range | 0.000 ppm-400.0 ppt |
| Resolution | 0.001 ppm-0.1 ppt | |
| Accuracy | 0.5% F.S. | |
| TDS Factor | 0.40-1.0 | |
| Temperature | Range | -10.0-110.0 C |
| Resolution | 0.1°C | |
| Accuracy | 0.3 C | |
| Temperature Sensor | Pt1000 | |
| Temperature Compensation | Automatic | |
| Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | <500 Ω | |
| Data interface | RS485 | have |
| Relay Ouput | On/Off | 2 SPST Relays |
| Output | 2.5A 230 VAC | |
| Cleaning/Alarm Relays | 1X 2.5A | |
| Others | Power | 85~260 VAC or 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
