PH5000 Controller / Transmitter

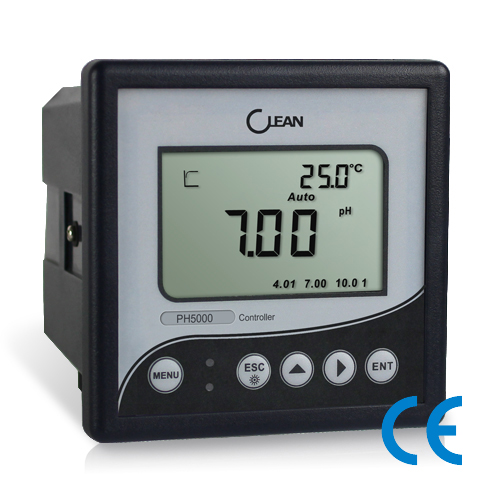

PH5000 pH / ORP Controller / Transmitter
User friendly, Large luminant LCD screen, easy operation, Symmetrical input, RS-485 output, High-end measuring technology ensures unbeatable precision and reliability at hazardous area applications. PH5000 is your professional choice.
●Designed for precise pH/ORP control at complex and harsh environment.
●High protection against electromagnetic interference.
●NEMA4X, IP65 rated: waterproof and anti-gas
●Multiple lines display of LCD screen, optional high luminance LED backlight
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users can set the cleaning frequency and time
●Scaleable isolated 0/4-20mA Outputs for pH/ORP
●Two optional electrode input: balanced input or asymmetric input
●Temperature value offset adjustment
●Glass electrode and antimony electrode are selectable to meet different industrial situations or
HF(hydrofluoric acid) measurement situation
●Independent setting for process temperature(TST1) and calibration temperature(TST2) in manual
temperature compensation (MTC) mode.
●RS-485 output
●High protection against electromagnetic interference.
●NEMA4X, IP65 rated: waterproof and anti-gas
●Multiple lines display of LCD screen, optional high luminance LED backlight
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users can set the cleaning frequency and time
●Scaleable isolated 0/4-20mA Outputs for pH/ORP
●Two optional electrode input: balanced input or asymmetric input
●Temperature value offset adjustment
●Glass electrode and antimony electrode are selectable to meet different industrial situations or
HF(hydrofluoric acid) measurement situation
●Independent setting for process temperature(TST1) and calibration temperature(TST2) in manual
temperature compensation (MTC) mode.
●RS-485 output
 |
 |
 |
 |
| Industrial process | Boiler water | Circulating water | Cooling Water |
| pH | Range | -2.00-16.00 pH |
| Resolution | 0.01 pH | |
| Accuracy | ±0.01 pH | |
| Signal Input Impedance | ≥1012 Ω | |
| ORP | Range | -2000~2000 mV |
| Resolution | 1 mV | |
| Accuracy | ±1 mV | |
| Temperature | Temperature Range | -10.0~110.0 °C |
| Resolution | 0.1 °C | |
| Precision | ±0.3 °C | |
| Temperature Sensor | Pt1000 | |
| Temperature Compensation | Automatic/Manual | |
| Signal Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | <500 Ω | |
| Data interface | RS485 | have |
| Relay Ouput | On/Off | 2 SPST Relays |
| Output | 2.5A 230 VAC | |
| Cleaning/Alarm Relays | 1X 2.5A | |
| Others | Power | 85~260 VAC or 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
| Model | Specification | images |
| PH3000 | pH/ORP Controller/Transmitter |  |
| CS1540 pH sensor | Versatile anti- poison Environmental waste water pH sensor |  |
| CS1543 pH sensor | Pure water, tap water, surface water and waste water |  |
| CS1549 pH sensor | High Temperature |  |
| CS1668 pH combination sensor | Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas. |  |
| CS1568 SNEX pH sensor | Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas. |  |
| CS1768 pH combination sensor | Designed for Harsh Industrial environment Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas. |  |
| CS1778 pH combination sensor | Designed for flue gas desulfurization Traditional porous-liquid-junction pH sensors easy to be failured by reference electrode coating and contamination or fine particle clogging, poisoning. | |
| CS1788 pH combination sensor | Designed for Ultra-pure Water/ Low ion concentration The red SNEX solid-state reference electrode system sustained releases potassium ion and chlorine ion, in addition to two sets of reference electrolyte permeability pores ensure stable and reliable readings. |  |
| CS1628 resistant to HF pH sensor | HF concentration＜1000ppm |  |
| CS1637 pH antimony sensor | HF concentration＞1000ppm |  |
| CS1728 resistant to HF pH sensor | HF concentration＜1000ppm |  |
| CS1737 pH antimony sensor | HF concentration＞1000ppm |  |
| CS1733 pH sensor | General purpose |  |
| CS1753 pH sensor | Process pH sensor with temperature compensation and connect to ground. |  |
| CS2543 General purpose Platnium ORP sensor | General Purpose |  |
| CS2733 Platinum ORP sensor | General Purpose |  |
| CS2753 ORP sensor | Designed for strong oxidative solution |  |
| CS2628 SNEX ORP sensor | Water quality monitoring, Sea water quality monitoring, Swimming pool, Waste water |  |
| CS2668 SNEX ORP sensor | Water quality monitoring, Sea water quality monitoring, Swimming pool, Waste water |  |
| CS2768 SNEX ORP sensor | Complex Industrial environment Anti-poison, long life span ORP sensor. |  |
