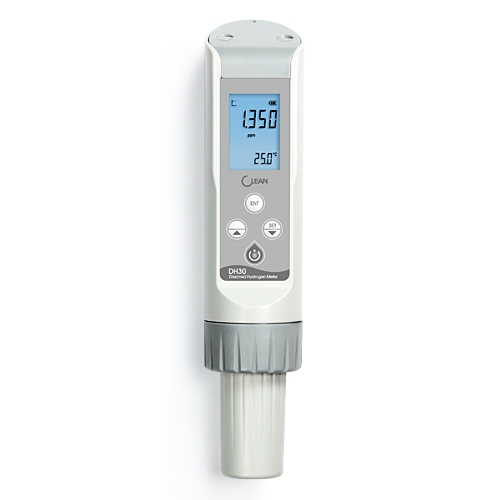

DH30 Dissolved Hydrogen Tester
DH30 Dissolved Hydrogen Tester
DH30 Dissolved Hydrogen Meter :
To measure Hydrogen Rich water, Dissolved
Hydrogen concentration in the Hydrogen water
generator.
DH30 is designed based on ASTM Standard Test
method. The precondition is to measure the
concentration of dissolved hydrogen at one
atmosphere for pure dissolved hydrogen water.
The method is to convert the solution potential into the concentration of dissolved hydrogen at 25 degrees Celsius. The measurement upper limit is around 1.6 ppm.
This method is the most convenient and fast method, but it is easy to be interfered by other reducing substances in the solution.
Application: Pure dissolved hydrogen water concentration measurement.
The method is to convert the solution potential into the concentration of dissolved hydrogen at 25 degrees Celsius. The measurement upper limit is around 1.6 ppm.
This method is the most convenient and fast method, but it is easy to be interfered by other reducing substances in the solution.
Application: Pure dissolved hydrogen water concentration measurement.
| Concentration measuring range | 0.000-2.000ppm |
| Resolution | 0.001 ppm |
| Accuracy | +0.002ppm |
| Temperature | °C,°F optional |

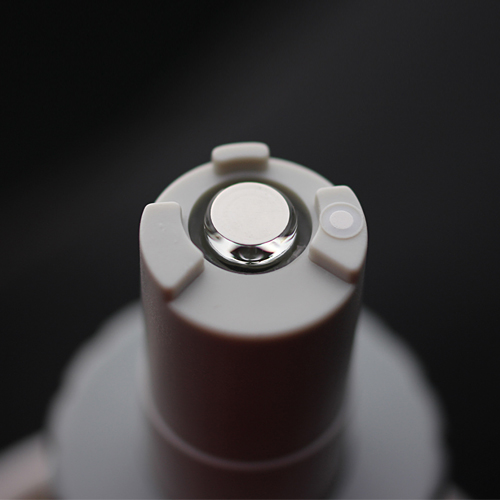

| Sensor | CS6931 replaceable dissolved hydrogen sensor |
| LCD | 20*30 mm multi-line crystal display with backlight |
| Backlight | ON/OFF optional |
| Auto power off | 5 minutes without key be pressed |
| Power | 1x1.5V AAA7 battery |
| Working Environment | -5°C - 60°C, Relative Humidity: <90% |
| Protection | IP67 |
| Dimensions | (HXWXD)185 X 40 X48mm |
| Weight | 95g |
