A Calcium Ion Selective Electrode sensor specifically designed to measure 0.5 ppm to Saturated (5x10-6 M to Saturated) concentrations of Ca2+.
Applications include, but not limited to: Water Softening Systems, Drinking and Mineral Waters, Blood Elecrtrolytes/Clinical Analysis.
Model
Specifications

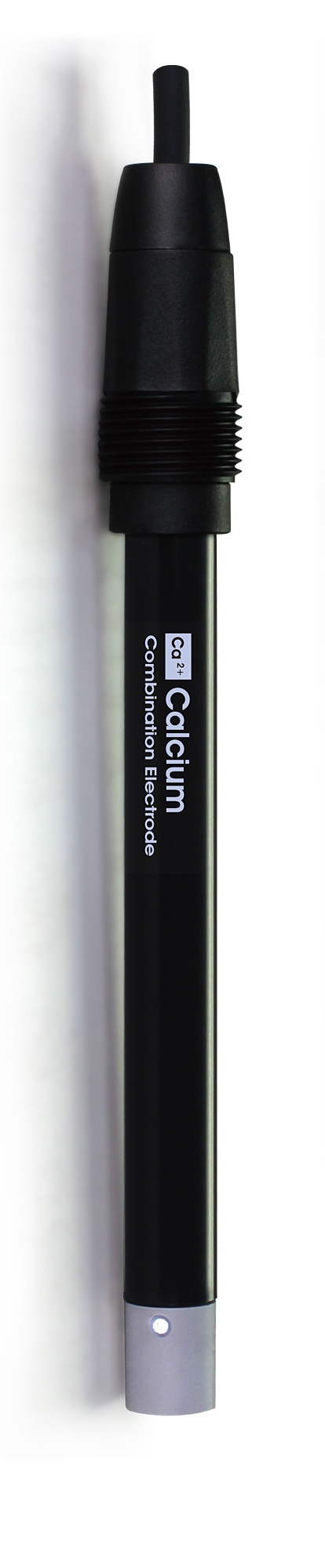

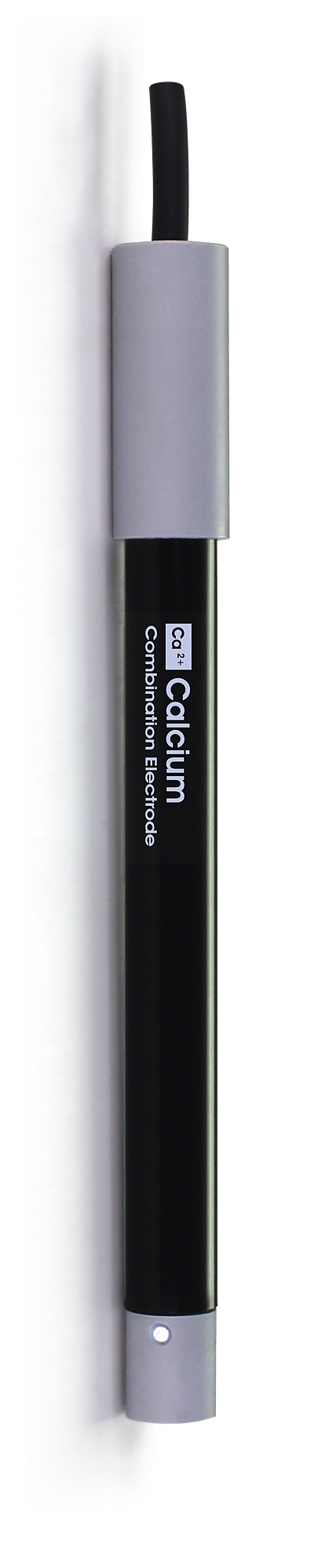

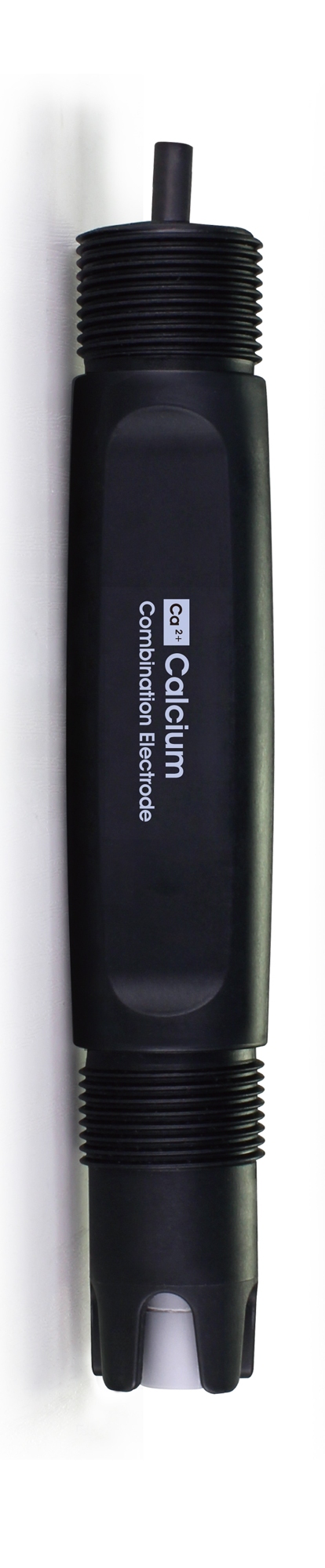

CS6210Ca CS6510Ca CS6710Ca ( Ca2+ ) A Calcium Ion Selective Electrode
Lab Process Process Slope 26 ± 2 mV between 10-100ppm @ 25°C
  PG13.5 NPT 3/4" Reproducibility ± 2%
CS6210Ca A Calcium Ion Selective Electrode sensor CS6510Ca A Calcium Ion Selective Electrode sensor CS6710Ca A Calcium Ion Selective Electrode sensor Interferences Pb2+, Hg2+, Cu2+, Ni2+
Temp. Range 0 to 40° C (if calibrated at that temp.)
Pressure Range 0 to 30 psi
Response Time 95% response in 30 seconds
Storage Long term, store dry; Short term, store in dilute calcium standard
Concentration Range 0.5 ppm to Saturated
(5 x 10-6 M to Saturated)
pH Range 3 to 10 pH
Resistance 100 megaohms
Care, Maintenance & Cleaning Treat with distilled water followed by calcium standard
Isopotential Point 1 ppm
On-Line Capability Yes
Applications Water Softening Systems, Drinking and Mineral Waters, Blood Electrolytes/Clinical Analysis
