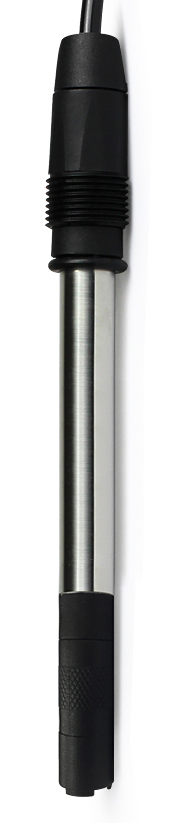

Nitrogen Oxide Ion Selective Electrode sensor

CLEAN Analog Sensors Nitrite

A Nitrogen Oxide Ion Selective Electrode sensor specifically designed to measure 0.2 ppm to 220 ppm (5 x 10^-6 M to 5 x 10^-3 M) concentrations of NOx.

Model

Specifications

CS6090 CS6090 A Nitrogen Oxide Ion Selective Electrode sensor specifically designed to measure 0.2 ppm to 220 ppm (5x10-6 M to 5x10-3 M) concentrations of NOx.

CS6090 A Nitrogen Oxide Ion Selective Electrode sensor specifically designed to measure 0.2 ppm to 220 ppm (5x10-6 M to 5x10-3 M) concentrations of NOx.

Model	CS6090
Slope	56 ± 3 mV between 10-100 ppm @ 25°C
Reproducibility	± 2%
Interferences	SO₂, HF, acetic acid
Temperature Range	0 to 50° C (if calibrated at that temperature)
Pressure Range	0 to 10 psi
Response Time	95% response in 30s
Concentration Range	0.2 ppm to 220 ppm (5 x 10^-6 M to 5 x 10^-3 M)
pH Range	1.1 to 1.7 pH
Electrolyte	CS6090E1,30ml
