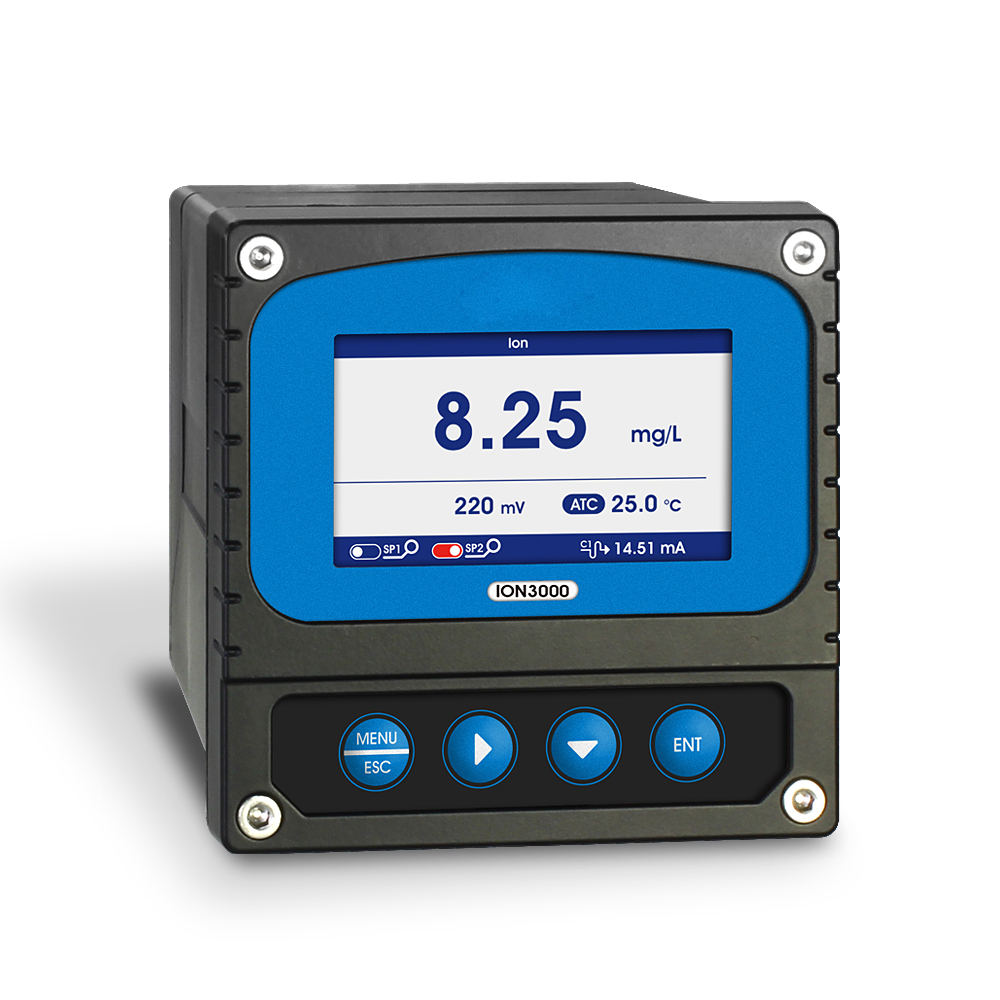

ION3000 Online Ion Analyzer
ION3000 Online Ion Analyzer
The controller equipped with different type of ions electrode, which widely used in power plant, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medical industry, food and beverage, environmental protection and water treatment, etc. The controller continuously monitors and control the concentration ionic in aqueous solution.
●Intelligent menu operation
●Various automatic calibration functions
●Signal measurement, stable and reliable
●Manual & auto temp. compensation
●2 relay control switches
●High alarm, low alarm, hysteresis control
●4-20mA & RS485 Multiple output modes
●Ion concentration, temperature, electric current, etc. showed in one screen
●Password protection function to prevent non-staff operates incorrect
●Various automatic calibration functions
●Signal measurement, stable and reliable
●Manual & auto temp. compensation
●2 relay control switches
●High alarm, low alarm, hysteresis control
●4-20mA & RS485 Multiple output modes
●Ion concentration, temperature, electric current, etc. showed in one screen
●Password protection function to prevent non-staff operates incorrect
| Measurement range | 0~99999mg/L(ppm) |
| Measurement Principle | Ion electrode method |
| Resolution | 0.01 ;0.1;1 mg/L(ppm) |
| Basic error | ±2.5% |
| Temperature | 0~50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 3A 250VAC,3A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 0.6kg |
| Dimensions (W*H*D) | 98×98×130mm |
| Panel hole opening size | 93x93mm |

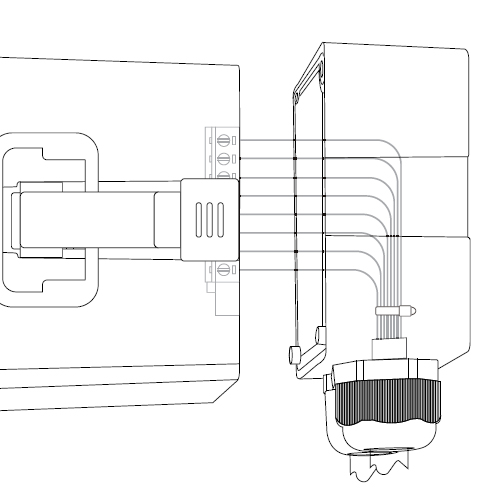

| Installation methods | Panel Mounting, Wall Mounting |

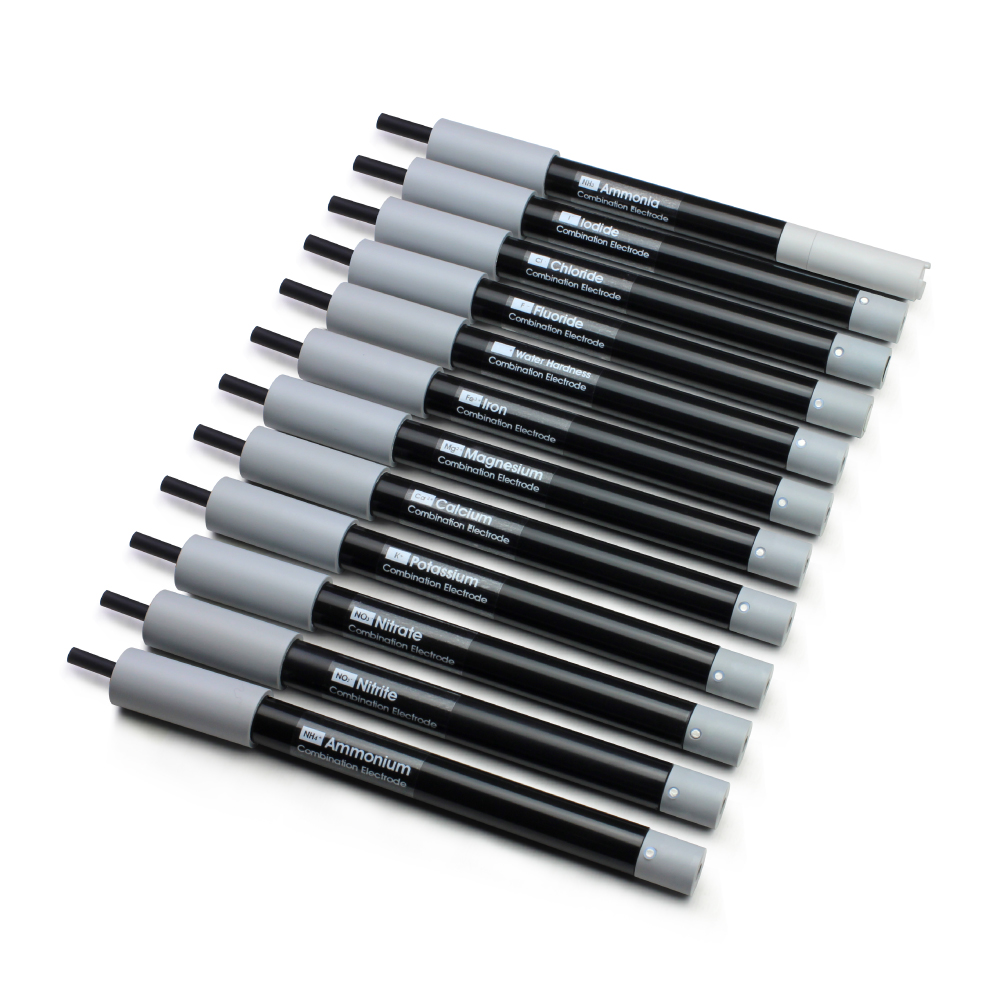

| type | NPT 3/4" | PG13.5 | Lab | application |
| Fluoride F- | CS6710F | CS6510F | CS6210F | Biological fluid, toothpaste |
| Chloride Cl- | CS6710Cl | CS6510Cl | CS6210Cl | River, plant tissue |
| Ammonium (NH4+) | CS6710NH4 | CS6510NH4 | CS6210NH4 | Boiler water, surface water, fertilizer |
| Ammonia NH3 | CS6712NH3 | CS6512NH3 | CS6212NH3 | High purity water for power plant |
| Nitrogen Oxide NOx. | CS6712NO2 | CS6512NO2 | CS6212NO2 | Solid waste leaching solution, vegetables, pickled products and other agricultural products |
| Carbon Dioxide CO2 | CS6712CO2 | CS6512CO2 | CS6212CO2 | Soft drinks, wine, fermentation |
| Nitrate NO3- | CS6710NO3 | CS6510NO3 | CS6210NO3 | Plant tissue, aquaculture, metallurgy, electroplating, sewage treatment |
| Nitrite NO2- | CS6710NO2 | CS6510NO2 | CS6210NO2 | Solid waste leaching solution, vegetables, pickled products and other agricultural products |
| Sodium ion Na+ | CS6710Na | CS6510Na | CS6210Na | Drinking water, surface water, sea water, tea, honey, feed, milk powder, saliva, serum, urine |
| Potassium K+ | CS6710K | CS6510K | CS6210K | Serum, fertilizer, wine |
| Magnesium Mg2+ | CS6710Mg | CS6510Mg | CS6210Mg | Water hardness, drilling mud, mining, drinking water, mineral water and seawater |
| Calcium Ca2+ | CS6710Ca | CS6510Ca | CS6210Ca | Water softening system, drinking water |
